Automotive cable FLY/FLRY type B, flexible, 0.75-70qmm

Loading images

Hersteller: HELUKABEL GmbH
Item number: VAR35847
Category: Installation Materials

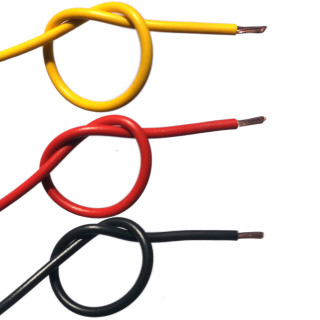

Flexible automotive cable FLRY type B for professional wiring of electrical installations in motor vehicles and superstructures. The cable is available in black, red or yellow, from 0.75 mm² to 70 mm² cable cross-section.

Available now

color
cable cross section

starting from 0,45 €

including 19% VAT. , plus shipping (Paket)

travel-experienced employees
daily DHL shipping
(Monday till Friday)
worldwide shipping

Description

Technical data

Special core insulation made of PVC
Temperature resistance: (3000 h) -40°C to 105°C
Operating voltage: up to 24 V
Test voltage: 1 kV (effective value)
Breakdown voltage: 5 kV (rms) Volume resistivity: min. 10⁹ Ohm · mm

Structure

Bare copper conductor, soft-annealed electrolytic copper E-Cu58 F21 to DIN 40500 Part 4 (The mechanical requirements apply to the unprocessed single wire.)
Bare copper stranded wire, conductor construction according to DIN 72551 Part 6

Type B: asymmetrical conductor construction

Special core insulation made of PVC

Properties

Oil and fuel resistant according to DIN ISO 6722 Part 2
Special properties Space and weight saving due to reduced insulation wall thickness
Requirements and tests according to DIN 72551 Part 5
