Autoterm Air 9D (Planar 9DM) Diesel Parking Heater

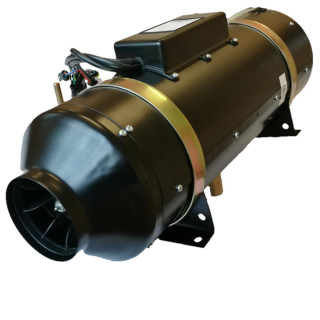

Autoterm Air 9D (Planar 9DM) parking heater

Parking heaters from the Russian manufacturer Autoterm have made a triumphant advance in
self-made travel vehicles, boats and yachts. They are robust, reliable, durable and economical in use. They became known under the former name Planar. New name, same proven product.

The youngest member of the heater family: The Autoterm Air 9D with 8 kW heating power.

Suitable for large vehicles

The Air 9D far exceeds the heating requirements of normal campers. With vans or top-insulated expedition vehicles, you are better advised with the little brothers Air 2D with or Air 4D. The Autoterm Air 9D, on the other hand, is the perfect candidate for heating poorly insulated coaches or double-decker buses (many windows) or a boat up to 15 m in length.

The Air 9D can be regulated from 3.2 kW to 8 kW. This output is designed to heat up to 290 m3 of space per hour.

Control unit

The Autoterm Air 9D diesel air heater can be regulated with different control units.

Comfort Control Panel: The new, improved control panel for the Autoterm / Planar auxiliary heater. With three freely adjustable timers for any day of the week, extended heating modes (including thermostat mode), voltage monitoring and much more. Multifunctional rotating wheel with a pleasantly grippy rubber coating and OLED display. Smaller installation dimensions, more comfortable use, more stylish design.

OLED Control Panel (formerly PU-27): An electronic control panel with OLED display and integrated temperature sensor (cable length 1.8 m) that also has a timer function. Menu navigation in English and Russian, operating instructions also in German.

Simple Control Panel (formerly PU-5): A simple control element with a rotary control to set a power level. A separately available temperature sensor can be connected for regulation via temperature mode.

Please select the desired control unit when purchasing the heater.

NEW OPTION: Control the heating from two different locations: With Push Control the heating can be operated using a second, compact switch button. You can order this as an option and thus conveniently control the heating from the driver's seat, for example, but also from the bed (works in conjunction with the Comfort Control Panel)

Voltage

The Autoterm Air 9D is designed for connection to the on-board network with 12 or 24 volts. Please select the appropriate variant according to your vehicle.

Diesel consumption

The heating power can be regulated between 3.2 kw and 8 kw. At the lowest level, the diesel consumption is approx. 0.42 l and at maximum output approx. 1 l per hour.

Power consumption

The Autoterm Air 9D consumes approx. 12 watts at minimum heating output, and 180 watts when set to the maximum level.

Air duct

9D has 100mm air intake and warm air outlet. Even if  reducing this diameter is not possible for most air heaters, 9D can be operated with 90mm air duct. An adapter with article number 18080 is needed in that case.

scope of delivery

Air 9D heater from Autoterm
Control Panel of choise
Autoterm fuel pump "Extra Quiet"
Tank extraction pipe
fuel line, total 5 m
Exhaust pipe 60 cm
Air intake hose, 47 cm
Cables, rings, nuts, screws, etc.

Attention: The scope of delivery includes a fuel hose, too. This is suitable as a connection to rigid lines or connectors. If you shorten it to suitable pieces, the length is usually completely sufficient. If, contrary to expectations, the quantity is still insufficient, the fuel hose can be reordered by the meter under item number 35612.

Autoterm Air 9D at a glance

Power in kW: 3.2 to 8
Fuel consumption in l / h: 0.42 to 1
Power consumption in W: 12 to 180
circulated air volume in l: 70 to 290
Voltage in V: 12 or 24 (please select)

Fuel: diesel
Start / stop mode: manual, own remote control, modem
Weight heating / complete set in kg: 12.8 / 18
Dimensions heater in cm: 65 x 21 x 28
Dimensions box in cm: 69 x 37 x 35
