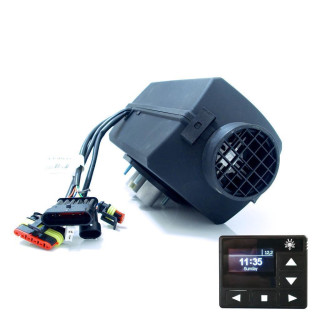

Diesel heater boat installation kit with Autoterm Air 2D (Planar 2D) 24V, optional side wall feed-through and OLED control panel

Our individually configurable kit for installing an Autoterm diesel heater on a boat, ship or yacht. Including through-hull-fitting. Version with 2 kW heating output for 24 V on-board power supply and OLED Control Panel.
  • Available immediately
  • Delivery time: 3 - 4 Workdays (Other countries)
max. power
581,95 €
incl. 19% VAT , Free shipping to DE NL. shipping costs (Paket)

  • travel-experienced employees
  • shipping with DHL & GLS
  • everything from one source
  • payment by Paypal or bank transfer
Please select a maximum of 1.
Please select a maximum of 1.
Your configuration

incl. 19% VAT , Free shipping to DE NL. shipping costs (Paket)


Diesel heating installation-kit for boats and yachts

For many years, Autoterm heaters, which have become known under the names Planar 2D and Planar 44D, have proven themselves in travel vehicles on land and at sea. The product has since been given a new name, but the robust, reliable technology remains.

This is also done by the other advantages of the air heater, now called Autoterm Air. Without loss of guarantee, they can also be installed in campers or boats by laypeople. Of course, the installation instructions and installation guidelines must be observed, which guarantee professional installation and thus safe, perfectly functioning operation of the heating.

All Autoterm heaters are recognizably tested for safety through the award of the E-mark (e2). They can therefore be installed without registration.

What does this heater "Marine"

There are no special heaters for the marine sector, the heater itself is 100% identical to the models installed in land vehicles. Special "marine kits" are offered on the market again and again, but all of them merely represent a combination of some components, but do not contain a special heater.


What advantage does our marine kit offer then?

Since every boat or ship is different, we have long refused to offer a “marine kit”. There is just more than one type of hull wall penetration, more than one type of heating installation, etc. That means a fixed kit makes no sense at all, unless we simply conceal the variety of possibilities and simply deliver SOMETHING. Unfortunately, that doesn't suit us, so we thought about something:


The individually combinable kit for the boat heater installation

We have designed our shop so that the relevant components can be freely configured.

Due to the possibility of an individual combination, we have the right solution for every installation situation.


Autoterm heaters for water and land vehicles


This marine kit contains the Autoterm 2D heater, a diesel air heater with a maximum heating output of 1.8 kW and 24V supply power.

The version with Autoterm 4D is also available, which offers 4 kW heating output (article number ...). Basically, the heater should be selected to match the volume of the room to be heated and not with too much heating power, as constant running at only the lowest level leads to soot in the combustion chamber. Occasional burning off at the highest power level is advisable in any case and ensures a long service life for the heater.

Both models are available for 12 V and 24 V on-board voltage. Please select accordingly when ordering.



Autoterm heaters can be installed by the boat owner without loss of guarantee (manufacturer's instructions for installation must of course be observed).

They are also provided with an e-mark (e2). This means that your installation does not require any registration or acceptance.


Independent height adjustment

Autoterm diesel air parking heaters have an altitude kit that automatically adjusts the fuel supply to changing air pressure conditions. So a boat tour on Lake Titiccaca at 3800 m above sea level is no problem.


Control units

Different control panels can be used to operate the heating.

Included in this set:
OLED Control Panel (former PU-27): An electronic control panel with OLED display and integrated temperature sensor (cable length 1.8 m) that also has a timer function. Menu navigation in English and Russian, operating instructions also in German.

Simple Control Panel (former PU-): A simple control element with a rotary control for setting a power level. A separately available temperature sensor can be connected for regulation via temperature mode.

Comfort Control Panel: The new, improved control panel for the Autoterm / Planar auxiliary heater. With three freely adjustable timers for any day of the week, extended heating modes (including thermostat mode), voltage monitoring and much more. Multifunctional rotating wheel with a pleasantly grippy rubber coating and OLED display. Smaller installation dimensions, more comfortable use, more stylish design.

Remote control

The heating wiring harness has an emergency switching input, which is often used to use its own remote control. The heater can then be regulated or switched on and off via permanent contact or a pulse signal.


Technical specifications

Operating voltage: 24V
Heating capacity: 0.8 kW (min), 1.8 kW (max)
Air volume flow: 34 m3 / h (min), 75 m3 / h (max)
Fuel consumption: 0.1 l / h (min), 0.24 l / h (max)
Power consumption: 10 W (min), 29 W (max)
Warm air piping: 60 mm system


Length: 33 cm
Height: 12 cm + 2.5 cm connections
Depth: 12 cm

Weight of the heater without accessories: 2.86 kg

Scope of delivery

Heater 2 kW 24V
OLED Control Panel
Autoterm fuel pump "Extra Quiet"
Exhaust silencer
Rubber holder for dosing pump
Wiring harness pump
Wiring harness heater
Air intake hose with integrated silencer
Heat protection hose
End piece exhaust pipe and clamp
Tank suction pipe
Fuel line, total 5.5 m
Fuel hose as a line connector (if necessary, split pieces to fit)
1 m metal corrugated exhaust pipe
Stainless steel exhaust silencer
Mounting material (screws, nuts, clamps, shrink tubing, cable ties)
operation manual
Through-hull fitting and accessories depending on configuration

Achtung: Geänderter Temperaturmodus

Die Funktionsweise des Temperaturmodus hat sich bei allen Autoterm Heizungen (dies betrifft damit alle unterschiedlichen Bedienteile) mit Auslieferung ab dem zweiten Quartal 2023 geändert. Die Informationen wurden bisher nicht von Autoterm in die Bedienungsanleitung übernommen.

Hier findest du alles zur Änderung.
Technical specifications
max. power:
OLED Control Panel
Item weight:
5,60 kg
Average item rating
Share your experiences with other customers!

All reviews:

Total entries: 2
Toll zusammengestelltes Set
5 from 5
Toll zusammengestelltes Set

Das Set ist super, es ist alles dabei was man anfangs braucht. Schön dass die Teile einzelner Baugruppen separat verpackt sind. Das macht alles sehr übersichtlich. Ich bezweifle, dass ich das alles bei der ersten Standheizung selbst hätte zusammenstellen können. Besten Dank an das Tigerexped Team!

Tolle Heizung
5 from 5
Tolle Heizung

Habe die Heizung Probe aufgebaut. Es ist ganz einfach und wenn man alles richtig befolgt was die Tigerexped Leute sagen klappt es wunderbar. Sie ist sofort nach dem entlüften angesprungen. Die Qualität ist sehr gut. Man kann nichts falsch machen. Ich würde sie wieder Kaufen. Kommunikation mit Tigerexped ist sehr gut. Kann ich nur empfehlen. Volle Punktzahl von mir.

Total entries: 2
