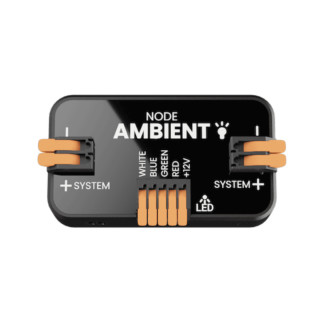

Revotion NODE Ambient - Intelligent lighting control for your mobile home
The Revotion NODE Ambient is the smart lighting module of the REVOTION system.
It enables precise control and dimming of colored (RGB, RGB-W) and single-color LEDs in your motorhome, van, or boat. Whether for atmospheric ambient lighting or functional lighting, with the NODE Ambient you can customize each lighting zone to your liking.
Thanks to the intuitive app control, you can easily adjust brightness and colors via your smartphone. The NODE Ambient also offers an input for a physical button that works independently of the app. Ideal for quick access or as a redundancy solution.
Each NODE Ambient controls its own lighting zone. By combining multiple modules, you can create any number of color zones and thus tailor-made lighting in your vehicle.
Installation is incredibly simple: Connect the LED strip, connect the power supply, and configure it in the REVOTION app. Installation is carried out using the included 3M DualLock system, which enables residue-free attachment.
The NODE Ambient features an integrated 5A self-resetting fuse that reliably protects your LED installations. It is compatible with 12V and 24V systems and integrates seamlessly into your digital vehicle electrical system.
Technical Specifications
Voltage range: 6-36V
Power consumption: 0.5W
Max. current load: 5A
Max. flow current (NODE chain): 20A
Operating temperature: -20°C to +50°C
Dimensions: 80 x 45 x 15 mm 25 mm
Weight: 58 g
Scope of delivery
- NODE Ambient module
- Mounting kit (3M DualLock)
- Connection diagram
Note: The NODE Ambient only works in combination with a REVOTION BRAIN.
