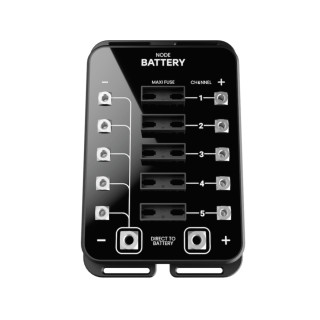

Revotion NODE Battery - Smart Energy Monitoring for Your Mobile Home
The Revotion NODE Battery makes your energy management smart on the go: Whether lithium, AGM, or gel battery, it provides you with reliable information on the charge level and shows exactly how much power is currently being consumed or generated. This way, you always have an overview of your energy supply in your camper, van, or boat - and can specifically control and optimize your power consumption.
With five individually configurable channels up to 60 A, the NODE Battery enables detailed monitoring of various energy sources and consumers, such as solar systems, chargers, or charging boosters. The channels can be combined to measure higher currents—for example, two channels for a 100 A charging booster. The app shows you in real time where the current is coming from and where it is flowing.
The NODE Battery is compatible with 12V and 24V systems and integrates seamlessly into the REVOTION system. It attaches easily and residue-free using the included 3M DualLock system.
With the NODE Battery, you get a reliable solution for monitoring and controlling your energy consumption, which can be flexibly adapted to your needs.
Technical Specifications
Voltage range: 6-36 V
Power consumption: 0.5 W (0.05 W in sleep mode)
Max. current per channel: 60 A at 25 °C
Max. current main connection: 200 A
Operating temperature: -20 °C to +50 °C
Dimensions: 190 x 120 x 31 mm
Weight: 466 g
Fuse holder: ATO Maxi Fuse
Current resolution: ±0.01 A
Current accuracy: ±2%
Voltage accuracy: ±0.5 V
Voltage resolution: ±0.01 V
Scope of delivery
- NODE Battery Module
- Mounting kit (2 x 3M DualLock counterparts)
- 10 x M6 screws
- 2 x M8 screws (including washers and snap rings)
- 8 x Maxi-Fuses (4 x 20 A, 4 x 60 A)
- Connection diagram
Note: The NODE Battery only works in combination with a REVOTION BRAIN and is not suitable for monitoring starter batteries.
