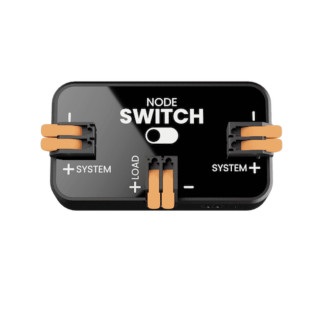

REVOTION - NODE Switch
The NODE Switch is a component of the modular REVOTION system and enables the digital control of individual devices or groups of devices.
With an integrated electric fuse, whose fuse rating can be flexibly adjusted between 1 and 20 A, it efficiently protects connected devices from overload.
The built-in measuring shunt allows precise monitoring of the power consumption of each connected device, which also allows leakage currents to be detected.
Control is conveniently carried out via the REVOTION app or optionally via a connected physical switch or button, which provides additional redundancy.
The Installation is easy and residue-free thanks to the included 3M DualLock kit.
With the Revotion NODE Switch, you get a reliable and flexible solution for controlling your electrical devices, increasing both safety and convenience in your vehicle.
A REVOTION BRAIN is required for operation.
Technical Specifications
Voltage range: 6-32 V
Power consumption: 0.5 W
Max. load current per output: 30 A (50 ms)
Continuous load current: 20 A at 25 °C
Operating temperature: -20 °C °C to +50 °C
Dimensions: 80 × 45 × 25 mm
Weight: 58 g
Connectors: WAGO cable terminals (0.25–4 mm²)
External switch connection: Yes (12V/24V signal)
Mounting: 3M DualLock click system
Compatible with 12V and 24V systems
Requires REVOTION BRAIN for operation
Scope of delivery
- NODE Switch Module
- Mounting kit (3M DualLock)
- Connection diagram
- Connector for physical Switch connection
