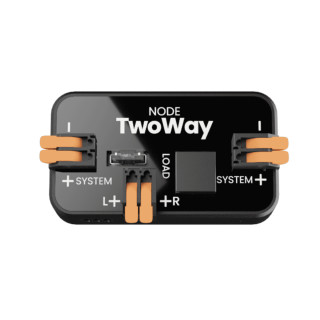

Revotion NODE TwoWay – Intelligent Control for Moving Components
The Revotion NODE TwoWay is the smart module of the REVOTION system for controlling devices with bidirectional movement. Whether awnings, fold-down beds, pop-up roofs, or electric valves – with the NODE TwoWay, you can control these components precisely and conveniently via an app or physical switch. The continuous motion control allows you to precisely move to the desired position, while the automatic timer provides additional safety.
Thanks to its integration into the REVOTION system and its compatibility with 12V and 24V systems, the NODE TwoWay can be seamlessly integrated into your existing setup. Easy installation using WAGO cable clamps and the included 3M DualLock system enable quick and residue-free installation.
Technical Specifications
Voltage range: 6–36 V
Power consumption: 0.5 W (0.05 W in standby mode)
Max. continuous current: 10 A
Max. current load: 20 A (1 minute)
Operating temperature: -20°C to +50°C
Dimensions (L x W x H): 80 x 45 x 10 mm 25 mm
Weight: 61 g
Connections: WAGO cable terminals (0.25–4 mm²)
External switch connection: Yes (switch or button)
Scope of delivery
- NODE TwoWay module
- Mounting kit (3M DualLock)
- Connection diagram
Note: The NODE TwoWay only works in combination with a REVOTION BRAIN.
