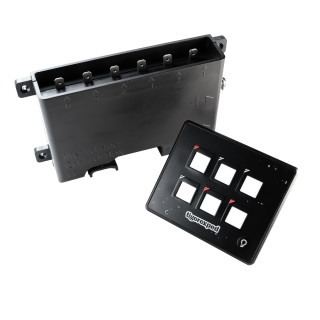

Switch panel boat / motorhome 12V and 24V flexible mounting thanks to REMOTE CONTROL PANEL with 6 ports, waterproof

  • Ultra-compact design and easy to install
  • Panel with almost no installation depth (only one hole for a single cable)
  • The panel is installed remotely from the control box, making it super flexible to install at any location
  • Use with standard micro USB cable
  • IP67 (short term immersion) certified
  • Status display via LED
  • Automatically resetting 10A fuse per connection
  • Noble backlight
  • Ports can be configured as switches or buttons

More Information below. For a device version with Bluetooth watch TEX4251

  • Available immediately
  • Delivery time: 3 - 4 Workdays (Other countries)
number of ports/bluetooth
92,95 €
incl. 19% VAT , plus shipping costs (Paket)
pcs

  • travel-experienced employees
  • daily DHL shipping
    (Monday till Friday)
  • worldwide shipping
Description

Control panel for boat or motorhome with REMOTE panel

The original tigerexped control panel with freely assignable ports, which can be individually programmed as switches or buttons, brings the operation of all your devices to one central place - extremely flexible and visually appealing.


Separate assembly of control box and panel

While the control box with all the consumer connections can be installed in the electrical compartment / cabinet, the panel can be conveniently led to any location with just a single micro USB cable up to 5 m in length. Instead of an installation depth through the connections, it only requires a hole to feed the USB cable through.
Note on the micro USB cable: The cable is not included in the scope of delivery and can be purchased as a standard product depending on the desired length. Please make sure that it is properly shielded, so do not buy a very cheap product!


IP67 certified

The control unit is water-protected and certified according to the IP67 standard, which means it can withstand submersion up to 1 meter in water for a maximum of 30 minutes. It is therefore suitable for use in areas where there is a risk of splashing water on deck.

On the other hand, IP67 confirms that the device is dust-tight and is protected even on expedition vehicle tours through desert areas with extremely fine dust (which experience has shown does not stop at even the smallest opening).

The control panel has a completely closed membranefoil surface for this purpose.



Fully flexible Options

All buttons are freely configurable as switches or Buttons!


Circuit protection

The circuit protection is guaranteed for each port by an integrated, resettable 10A fuse.


Switchboard 12V AND 24V suitable

The permissible operating voltage for our original tigerexped switchboard with remote panel is between 11 and 30 volts. It can therefore be operated with both 12 and 24 volt on-board voltage without any Problems.


Connection consumer

All consumers are connected to the control box using flat plugs.


Power supply Connection

The power supply is fed to the control box by a screw connection on the side housing.


Connect the control panel

All information on connecting the control panel and the configuration of the buttons can be found after selecting the device according to the number of connections required (6 or 10 buttons / devices to be connected) under the menu item “PDF”.

Others also bought:
Technical specifications
Item weight:
0,30 kg
Dimensions packing ( l × w × h ):
9,30 × 6,00 × 16,50 cm
Reviews
Average item rating
Share your experiences with other customers!

All reviews:

Total entries: 1
Super Panel
5 from 5
Super Panel

Ich habe das Teil in meinem Kastenwagen verbaut und es ist einfach gut. Alles einfach anzuschließen und es baut durch den USB Anschluss super flach auf.

Total entries: 1
PDF

Manual switchboard 6 Ports DE/EN
