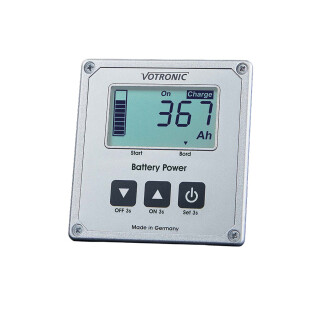

VOTRONIC LCD Battery Computer S with 200 A Smart-Shunt
How much battery capacity do you have left? The VOTRONIC LCD Battery Computer S shows your leisure battery’s state of charge, the current charging or discharging current and the remaining capacity. This helps you keep track of your power consumption and recharge in good time. The matching 200 A Smart-Shunt and earth strap are included.
Your benefits at a glance
- Remaining capacity in amp-hours and percent, plus a bar graph
- Displays battery current, battery voltage and estimated remaining runtime
- Additional voltage display for the starter battery
- Configurable for flooded lead-acid, gel, AGM and LiFePO4 batteries
- Display with dimmable white backlighting
- Programmable switching output for controlling an optional switching unit
- 200 A Smart-Shunt and earth strap included
Keep track of your battery capacity
Using the included VOTRONIC Smart-Shunt, the system measures the currents flowing into and out of your leisure battery. It takes stored battery characteristic curves and self-discharge into account when calculating the remaining capacity. When a full charge is detected, the state-of-charge display is automatically adjusted.
The current display shows whether your battery is being charged or discharged by connected loads. Based on the remaining capacity and current power draw, the runtime display estimates how long it will take to reach the configured switch-off threshold. At high currents, this value serves as a guide.
Control connected loads
Combined with an additional switching unit, such as a VOTRONIC Switch Unit, you can switch connected loads manually via the display or automatically according to the battery’s state of charge. The switch-on and switch-off thresholds are adjustable.
The switching output controls the external switching unit; high load currents are not switched directly through the display.
Compact display, flexible upgrades
The display can be installed in an easily accessible position inside the vehicle and connected to the Smart-Shunt via a plug-in control cable. An optional housing is available for surface mounting.
With the separately available Bluetooth Connector S-BC, you can also view and log your battery data on a smartphone or tablet.
Technical specifications
| Specification | Value |
|---|---|
| System voltage | 12 V / 24 V |
| Battery types | Flooded lead-acid, gel, AGM, LiFePO4 |
| Configurable battery capacity | 50–2,000 Ah |
| Displayed units | A, V, Ah, h, % |
| Display current consumption | 8–60 mA, depending on backlight setting |
| Display backlight | White, dimmable |
| Display dimensions | 85 × 80 × 24 mm |
| Mounting cut-out | Approx. 72 × 66 mm |
| Display weight | Approx. 55 g |
| Smart-Shunt continuous current rating | 200 A |
200 A Smart-Shunt included
The matching VOTRONIC Smart-Shunt with a continuous current rating of 200 A and an earth strap is included. It measures your leisure battery’s charging and discharging currents and provides the readings used to calculate its state of charge.
The Bluetooth Connector and external switching unit are available separately as accessories.
