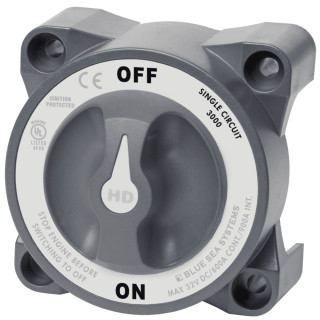

HD Series Battery Master Switch, 600A Blue Sea
Safe, reliable battery disconnection for your boat, RV, or mobile power supply such as diesel generators or high-current appliances. Robustly built with corrosion-resistant internal contacts, a durable housing, and designed for high currents.
Safe:
The switch is ignition protected for installations where sparking is possible and operational reliability is crucial.
Universally mountable:
The housing allows for both surface and rear mounting. This means it fits almost anywhere, whether in a tool cabinet or on a circuit board. Powerful: Designed for high current carrying capacity. Robust & durable: Tin-plated copper terminals ensure optimal conductivity and corrosion resistance; the continuous, one-piece design prevents loosening. Over time.
Technical Data
- Switch Type: Single-Circuit ON-OFF
- Switching Positions: 2 (ON / OFF)
- Voltage (max.): 32 V DC
- Continuous Current: 600 A
- Short-Term Current (intermittent, 5 minutes): 900 A
- Starting Current (30 s): 1750 A
-
Connection / Cable Size: recommended up to 2 µm; 4/0 AWG (120 mm) battery cable Terminals/Screws: Terminal stud M12 (1/2"), tightening torque approx. 220 in-lb (24.9 Nm) Mounting: Surface or rear panel mounting possible Housing color: Gray Weight: Approx. 0.59 kg Input battery: 1 battery (one input) Protection/Standards: Ignition protected, marine rated
manufacturer information:
BLUE SEA Systems
Ryzex Way 4600
Bellingham, 98226
WA, US
conductor@bluesea.com
responsible person:
BLUE SEA Systems
Ryzex Way 4600
Bellingham, 98226
WA, US
conductor@bluesea.com
Item weight: |
0,52 kg |
