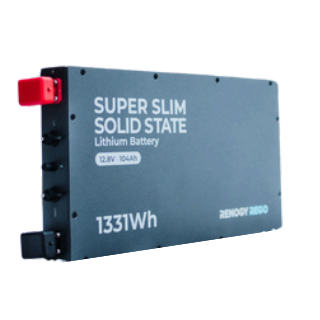

Renogy REGO 12.8V 104Ah Super Slim Solid State Lithium Battery
The Renogy REGO 12.8V 104Ah solid-state lithium battery is designed for installations with limited space and combines a compact form factor with advanced cell technology. Its slim design makes it suitable for mounting under or behind seats.
With a capacity of 104 Ah and LiFePO4 chemistry, the battery offers up to 6000 cycles. Maximum continuous discharge is 200 A, with a peak discharge of 290 A for 30 seconds.
The battery uses pouch cells in a semi-solid-state design. This reduces liquid electrolyte content and improves stability as well as resistance to mechanical stress and high temperatures.
An integrated battery management system (BMS) provides more than 60 protection functions, including over/under voltage protection, overcurrent protection, short circuit protection, temperature protection and automatic cell balancing.
The integrated self-heating function enables charging at low temperatures down to -20°C.
With Bluetooth and CAN bus communication, the battery can be monitored and integrated into compatible systems. Real-time operating data can be accessed remotely.
The enclosure is designed to be water-resistant, dustproof and fire-retardant (IP67-rated), providing additional protection in mobile applications.
Key Features
- Compact slim design: Only 61 mm height for space-saving installation.
- Solid-state cell technology: Reduced electrolyte content for improved stability.
- 6000 cycles: Long service life with LiFePO4 chemistry.
- High discharge capability: 200 A continuous, 290 A peak (30 s).
- Self-heating: Enables charging down to -20°C.
- Bluetooth & CAN: Monitoring and system integration.
- Advanced protection: BMS with more than 60 protection features.
- Robust enclosure: Water and dust resistant (IP67).
Technical Data
- Model: Renogy REGO 12.8V 104Ah Solid State Lithium Battery
- Nominal voltage: 12.8 V
- Capacity: 104 Ah
- Cell type: Pouch
- Max continuous discharge: 200 A
- Peak discharge: 290 A @ 30 s
- Cycle life: 6000 cycles
- Configuration: Up to 4 in series, up to 16 in parallel (4P4S)
- Charge temperature: -20°C to 55°C
- Discharge temperature: -20°C to 60°C
- Storage temperature: -20°C to 60°C
- Communication: Bluetooth, CAN bus
- Dimensions: 579 x 290 x 61 mm
- Weight: 13.38 kg
- Certifications: CE, RoHS, R10, FCC, IC, PSE, UKCA, RCM, UN38.3, MSDS
