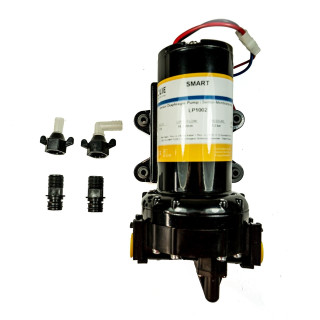

Lilie smart sensor water pump 12V, 18,9l, 5.2bar

Lilie Smart Sensor Series by Lilie

Maximum comfort thanks to a smart sensor control that constantly monitors and adjusts the water pressure. Microprocessor-controlled electronics regulate the water flow precisely as needed – without splashing, without varying pressure, and with a super quiet running noise.

Certified according to E1 and DIN 2001-2.

Performance

This Smart Sensor water pump is a real powerhouse with a maximum pressure of 5.2 bar and delivers up to 18.9 liters per minute. It runs extremely quietly, ensuring comfortable use in your camper.

Remember that all other components of the camper's water system also require a pressure equalization tank.

Pressure equalization tank

The Smart Sensor series operates WITHOUT a pressure equalization tank, as the pump regulates this automatically. This saves space, weight, money, and unnecessary sources of error in the water supply system.

Flexible installation position

The Smart Sensor pumps can be positioned very flexibly, making them easy to find a spot. However, make sure you can still easily reach them for maintenance work. The orientation can be chosen as desired. When installing vertically, it is recommended to point the pump head downwards to prevent water from entering the motor in the event of a leak – but don't worry: a leak is very unlikely.

Adjustability

The pumps in the Lilie Smart Sensor series, thanks to their sensitive sensors, ensure unprecedentedly precise and demand-based water delivery without loud start-up noises, fluctuations, or splashing. Therefore, they have no need for, and no possibility of, individual adjustment. If the pressure exceeds the load limit of other components of the freshwater system in the motorhome or camper, a pressure regulator must be used.

Accessories

Two quick fittings and 12 mm grommets are included.

Lilie Smart Sensor - Further Installation Instructions

For optimal performance, install the pump as close to the tank as possible.
Choose a location with free space around the pump for adequate ventilation.
A stable, solid surface prevents the transmission of vibrations (and thus noise).
The installation of an appropriate filter upstream of the pump is essential. Recommended to prevent dirt particles from damaging the pump!

The pump is designed exclusively for pumping clean drinking water.

Technical Specifications:

Voltage: 12 V
Max. Flow Rate: 18.9 l/min
Shut-off Pressure: 5.2 bar
Max. Current Consumption: 10.0 amps
Max. Suction Head: 3.9 m
Tap Points: 5
Weight: 3.2kg
Dimensions: L260 x W123 x H145 mm
Pump head material: Membrane: TPE; Valve set: FKM; Housing: Polypropylene
