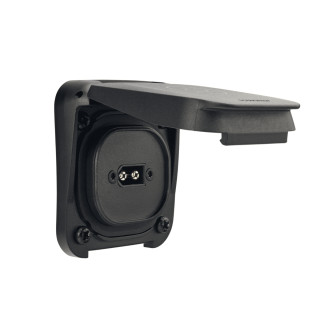

Scanstrut Ventura XT60 Solar Connection
The Scanstrut Ventura junction box with integrated XT60 connector is the perfect solution if you want to safely and comfortably connect accessories to your vehicle outdoors – without any exposed cable ends or improvised connectors.
The box from the Ventura series is factory-equipped with an original Amass XT60EW-M connector. This connector system has proven itself many times over in the 12 V range – thanks to its high current carrying capacity, secure locking, and compact design. Whether for work lights, external solar panels, compressors, or mobile cooling devices: If you use accessories with an XT60 connector, the Ventura Solar Connection provides a professional installation solution for the exterior wall of your camper or van.
High-quality materials for outdoor use
All sockets in the Ventura series were developed with the Scanstrut technologies and materials for marine use and therefore subjected to rigorous UV and waterproof tests (waterproof class: IP68, IP69K) to withstand even the harshest conditions. The use of highly robust plastics and 316 stainless steel metal parts ensures durability and first-class performance in any environment.
Key Features of the Scanstrut Ventura XT60 Solar Connection
- Connector Type: Amass XT60EW-M Connector, Waterproof
- IP68, IP69K Waterproof (with lid closed)
- Premium click lock for a tight lid fit
- Easy Installation
- Standard hole saw mounting (25 mm, 1.00 inch)
- Built-in gasket for a watertight seal
- Lid rotates 180° Open
- Marine-grade 316 stainless steel components
- 90° lid retention function
- UV-resistant
Electrical Specifications
- Connector type: Amass XT60EW-M male, waterproof
- Compatible connectors: XT60W-F female, waterproof (IP65) and XT60-F standard female
- Maximum connected current: 30 A continuous / 60 A short-term
- Maximum connected current: 500 V DC
- Maximum power output (12 V input): 360 W
- Maximum power output (24 V input): 720 W
- Maximum power output (48 V input): 1440 W
- Cable cross-section: 4 mm² / 12 AWG
- Cable length: 150 mm (6 in), tinned copper wire
- Cable bending radius (4 x D): 18 mm (0.71 in)
- Waterproof rating: IP68, IP69K (front only with lid closed)
- Certification: CE, ROHS
