Like the 10.000 system, this Inprojal line is a full-fledged range of outlets and switches in small format. The 20.000 system is more refined and elegant and offers the option of reducing the installation depth using spacer frames.
Greatest comfort in the smallest space, in short: a full-fledged installation range in miniature format. For power and signals anywhere you like.
Miniature in this case means: outer dimensions per element including frame of only 60 x 60 mm – with a pitch of just 53 mm.
Our spacer frames also reduce the installation depth by 3mm.

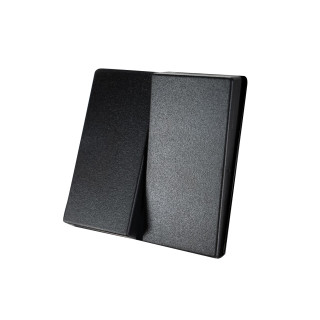

This item is the series switch, 2x switch, 1-pole with double rocker.
Installation depth approx. 23mm with touch protection box.
What else do I need?
A frame is also required; depending on how many components of the series are to be installed together, there are single, double or triple frames.
Optionally the matching spacer frames (single, double or triple) can be used to reduce the installation depth.
manufacturer information:
inprojal elektrosysteme GmbH
Kerkhagener Weg 4
Lüdenscheid, 58513
NRW, DE
info@inprojal.de
responsible person:
inprojal elektrosysteme GmbH
Kerkhagener Weg 4
Lüdenscheid, 58513
NRW, DE
info@inprojal.de
| Item information | Value |
|---|---|
Number of gangs: |
1-gang |
Mounting system: |
Inprojal System 20.000 |
Item weight: |
0,04 kg |
