Description

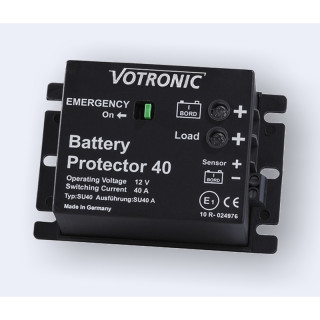

The Battery Protector 40 from Votronic protects the battery from deep discharge and the loads from undervoltage and overvoltage, and (controlled by an external switch) can also serve as a remote-controllable main battery switch.
The battery protector is connected between the supply battery and the loads; it is suitable for all lead-acid battery types (acid, gel, AGM) and all makes.
Technical data:
Dimensions: 90 x 60 x 38mm incl. mounting tabs, without connections (WxDxH)
The battery protector is connected between the supply battery and the loads; it is suitable for all lead-acid battery types (acid, gel, AGM) and all makes.
- Switching current 40 A, can be overloaded briefly up to 60 A, switching state indicator visible from outside
- Emergency-on function via switch on the unit, can also be operated remotely via an external switch
- Automatic reset as soon as the battery voltage is back in the normal range (charging)
- Separate sensor cable and switching thresholds with hysteresis and timer functions for trouble-free operation
- Bistable power relay, very low self-consumption, less than 3 mA (per EN 13976)
- No self-consumption when switched off via an external switch, e.g. remote control as battery main switch
- Solid screw terminals for battery and load cable cross-sections up to 10mm²
Technical data:
- Switching current continuous/short-term: 40/60A
- Undervoltage switching threshold: 10.7V
- Undervoltage reset point: 12.5V
- Overvoltage off: 15.5V, on: 15V
- Temperature range: -20 to +50°C
Dimensions: 90 x 60 x 38mm incl. mounting tabs, without connections (WxDxH)
