Complete Solar Kit 180Wp ULTRAblack tiger for RV, Campervan or Boat

Complete Solar Kit with 180Wp output and everything you need

Save yourself the time-consuming task of comparing and searching for umpteen individual parts. With this complete solar kit, you get everything you need to install your motorhome solar system with just one click.

All components are selected according to the highest quality standards, so you can look forward to a long, reliable service life on your RV trips. Especially when it comes to accessories or small parts (e.g. cable lugs), the influence of quality on the overall system is often underestimated. You will never find cheap hardware store standards for filling up our complete electric or solar kits.

Cable lengths of high-quality FLRY vehicle cable were measured generously and sufficiently for a van built.

MPPT Charge Controller from Votronic or Victron Energy

To ensure that your requirements are met to the point, this complete solar set is available with two different MPPT solar charge controllers.

1. MPP Solar Charge Control from Votronic - offers you two charging outputs. A main charging output for the on-board battery and an additional trickle charge (max. 1A) for the starter battery (with overcharge protection). It also has active cooling. In this case, an additional device is required for Bluetooth monitoring.

2. SmartSolar from Victron Energy - offers you integrated Bluetooth monitoring, but no secondary charging branch for the starter battery. Cooling is passive.

Note: Ventilation is always important where such devices are installed so that heat can be dissipated. With passive cooling, the cooling fins should run upright on the wall and air should be able to circulate well on its own due to the temperature differences.

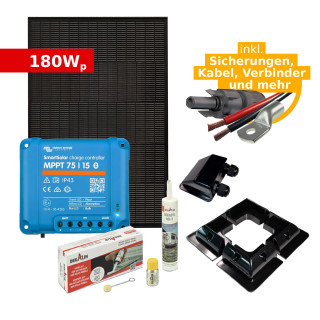

Scope of delivery of the Complete Solar Kit

This package contains the following carefully coordinated components:

• 1 solar module ULTRAblack tiger 180 (Size:1100x796mm)
  Note: When planning, please don't forget to take into account the dimensions of the pure panel as well as the additional space required by the mounting corners - that's 6 cm per side.
• 1 solar charge controller (like chosen)
• 1 solar cable seal
• 1 set of mounting corners for attaching the solar module
• 1 Dekalin adhesive set for mounting the module in black, including surface preparation and work accessories
• 2 matching fuses
• 1 Fuse Holder MIDI
• 5 matching tubular cable lugs in professional quality
• 2 MC4 connectors
• solar wire
• FLRY vehicle cable in red and black
