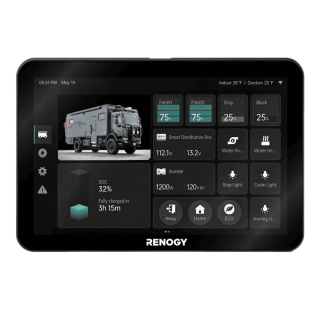

Renogy ONE Vision 7" Full System Monitor
The Renogy ONE Vision 7 is a touchscreen display designed for system-wide monitoring and control in vehicle power systems. When connected to the Renogy ONE Core, it provides centralized system visualization and control.
The 7-inch touchscreen with a resolution of 600 x 1024 displays real-time data such as energy production, consumption and system status, along with alerts and diagnostic information.
The device runs on Android 12 and features a quad-core Cortex-A53 processor, 2 GB RAM and 16 GB storage.
With Wi-Fi and Bluetooth connectivity, the system can be accessed and managed easily. In combination with the ONE Core, it enables full system monitoring and control.
Built-in diagnostic tools and online support assist with troubleshooting and system management.
The compact design is suitable for vehicle installations and operates within a temperature range of -20°C to 70°C.
Key Features
- 7" touchscreen: Central display and control interface.
- System-wide visualization: Energy flow, consumption and system status.
- ONE Core integration: Extends monitoring and control capabilities.
- Android 12 platform: Quad-core performance.
- Wi-Fi & Bluetooth: System connectivity.
- Diagnostics: Alerts and troubleshooting support.
- Compact design: Suitable for vehicle installation.
Technical Data
- Model: Renogy ONE Vision 7 System Monitor
- Display: 7" touchscreen (600 x 1024)
- Brightness: 300 cd/m²
- Operating system: Android 12
- Processor: Quad-core Cortex-A53 (64-bit)
- Memory: 2 GB
- Storage: 16 GB
- Communication: Wi-Fi (2.4 GHz), Bluetooth LE
- Operating temperature: -20°C to 70°C
- Dimensions: 181.4 x 118.4 x 25.2 mm
- Weight: 350 g
- Certifications: CE, R10, UKCA, FCC, IC ID, C-TICK, RCM, PSE-TELEC
