LiFePO4 Battery 500Ah 12V, under seat size, self-heating with bluetooth & CAN BUS-comunication - RENOGY PRO

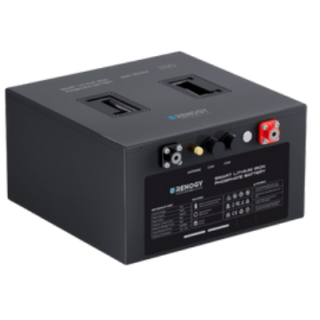

Renogy Pro Underseat LiFePO₄ Battery 12.8V 500Ah with Bluetooth & Self-Heating

The Renogy Pro Underseat LiFePO₄ Battery 12.8V 500Ah is a high-capacity energy storage solution for demanding mobile power systems in motorhomes, caravans, and other off-grid applications. Its housing is designed for installation under RV seats, combining very high capacity with a form factor optimized for this mounting space.

Built on lithium iron phosphate (LiFePO₄) chemistry, the battery is engineered for long service life. It delivers a cycle life of 3500 cycles at 80% DoD. With a rated capacity of 500 Ah, it provides approximately 6400 Wh of energy.

An integrated smart Battery Management System (BMS) provides reliable protection and monitoring during operation. Integrated Bluetooth enables convenient real-time monitoring of key battery data via the Renogy DC Home App.

Designed for high-demand systems, the battery supports strong current capability: up to 200 A maximum continuous charge current and up to 250 A maximum continuous discharge current. For short bursts, a 300 A peak discharge current (10 s) is supported.

The integrated self-heating function supports reliable charging at low temperatures. For use in typical mobile environments, the battery is rated to IP65.

The battery features a CAN bus interface for communication with compatible inverters, chargers, and energy management systems. Via the CAN bus, key operating data such as state of charge, voltage, current, and status information can be transmitted directly to connected devices. This enables integrated control and monitoring within appropriately designed power systems.

Key Features

• Underseat-optimized design for installation beneath RV seats.
• Very high capacity: 12.8 V / 500 Ah (approx. 6400 Wh).
• Bluetooth monitoring via the Renogy DC Home App.
• Self-heating function for reliable charging in cold conditions.
• High current capability: up to 200 A charging, up to 250 A discharging (continuous).
• IP65 protection rating for demanding environments.
• Auto balance of cells when charging
• CAN-bus interface for integrated Control and monitoring

Specifications

Electrical Data

• Battery type / chemistry: LiFePO₄ (Lithium Iron Phosphate)
• Nominal voltage: 12.8 V
• Rated capacity: 500 Ah
• Voltage range: 10 V to 14.8 V
• Cycle life: 3500 cycles (80% DoD)

Operation Parameters

• Charge voltage: 14.6 V
• Maximum continuous charge current: 200 A
• Recommended charging current: 200 A
• Maximum continuous discharge current: 250 A
• Peak discharge current: 300 A (10 s)
• Charge temperature range: –20 °C to +55 °C
• Discharge temperature range: –20 °C to +60 °C
• Storage temperature range: –20 °C to +45 °C
• Operating relative humidity: 10% to 95%

Expandability

• Connection method: Parallel (up to 8 batteries)

Physical Data

• Dimensions (L × W × H): 355 × 350 × 198 mm
• Weight: 50 kg
• Terminal bolt size: Long terminal bolt M8 × 1.25 × 16 mm
• Recommended terminal torque: 8 N·m
• Protection rating: IP65

Certifications

• RoHS
• UN38.3
• CE
• MSDS
• ECE R10
