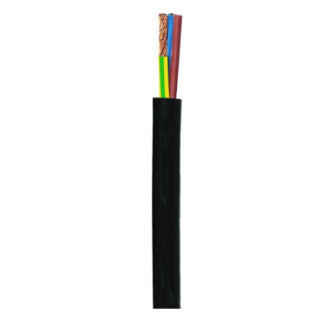

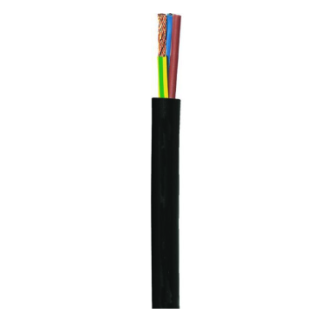

Rubber Hose Connection and Control Cable 3 x 2,5 mm² Type H07RN-F

HAR-certified rubber hose power and control cable H07RN-F 3G2.5.

Number of cores: 3 G 2.5 mm².

The power and control cable has an outer sheath made of a rubber compound and a diameter of 10.9 to 12.5 mm. It can be installed in dry, damp, or wet rooms according to EN 50565-2.

  • Available immediately
  • Delivery time: 3 - 4 Workdays (DE - int. shipments may differ)
3,95 €
incl. 19% VAT , plus shipping costs (Paket)
m
  • travel-experienced employees
  • shipping with DHL & GLS
  • everything from one source
  • payment by Paypal or bank transfer
Description

Rubber hose cable / connection and control cable H07RN-F

Designation H07RN-F 3G2.5
Conductor cross-section 2.5 mm²
Conductor class Fine-stranded (Class 5)
Number of conductors 3
Conductor material Bare copper
Insulation material Rubber - Ethylene Propylene Rubber (EPR)
Sheath material Rubber - Ethylene Propylene Rubber (EPR)
Sheath color Black
Cable geometry Round
Outer diameter approx. 14 mm
Rated voltage U₀/U 450/750 V
Temperature range (flexible use) -25°C to +60°C
Temperature range (fixed installation) -25°C to +60°C
Oil-resistant according to EN 60811-404 Yes
Flame-retardant according to IEC 60332-1-2 Yes
CPR fire class according to EN 13501-6 Eca
Applications - Hand and power tools according to EN 50565-2
- Medium mechanical stress
- Use in dry, damp, or wet rooms and for fixed installation, e.g., on plaster
- Industrial and agricultural use
- More demanding mechanical applications
- Single-core H07RN-F cables can be used for short-circuit and ground-fault proof installations
Others also bought:
Technical specifications
Item weight:
 0,18 kg
