Simply Fuel Extractor for Fiat Ducato and similar models
This fuel extractor makes installation much easier. It only takes a few minutes, and there’s no risk of failing to properly seal the tank unit afterwards – because you don’t have to remove it in the first place.
Here’s how it works:
1. Unscrew the vent that sits on the fuel tank unit.
2. Loosen the clamp between the vent hose and the connecting pipe, then pull the pipe off the hose.
3. Insert the Simply fuel extractor at a slight angle into the vent opening on the tank unit, then push the vent hose with the clamp onto it (a new clamp is included).
4. Press the fuel extractor firmly into place and tighten it with the original nut (the seals are completely gas-tight – there’ll be no diesel smell inside the vehicle).
5. Attach the fuel line from the diesel heater to the fuel extractor and secure it with the supplied clamp. Then tighten the clamp on the vent hose again.
That’s it!
The Simply fuel extractor fits the following vehicles:
- Fiat Ducato 250 from model year 2006
- Citroen Jumper II from model year 2006
- Peugeot Boxer from model year 2006
- Opel Movano C from model year 2021
- Toyota Proace Max from model year 2024

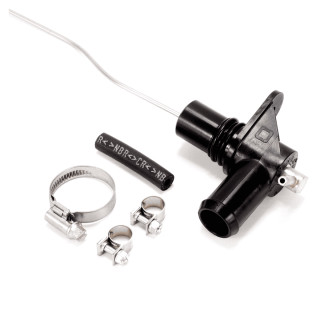

Scope of delivery:
- 1 x Simply fuel extractor
- 1 x fuel hose 4.5 mm (inner diameter) x 10.5 mm (outer diameter) x 50.00 mm (length)
- 1 x clamp for securing the Simply fuel extractor
- 2 x clamps for securing the fuel hose
manufacturer information:
Dörfelt GmbH
Uhdestraße 8
Zwickau, 8056
Sachsen, DE
info@standheizungs-shop.de
responsible person:
Dörfelt GmbH
Uhdestraße 8
Zwickau, 8056
Sachsen, DE
info@standheizungs-shop.de
Item weight: |
0,55 kg |
