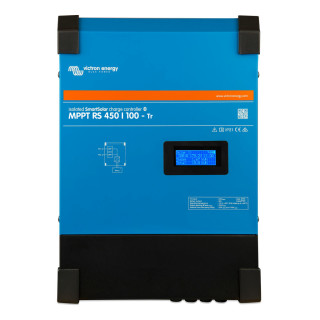

SmartSolar MPPT RS 450/100-Tr

The Victron SmartSolar MPPT RS solar charge controller is optimal for large PV arrays connected in series and charging 48 VDC battery banks. If you have a large off-grid or grid-tied battery system, SmartSolar RS is perfect for you.

The SmartSolar MPPT RS is available in two different performance variants. Choose the right one for you from the dropdown.

  • Must be ordered. Ready for shipment in 4 days after order.
  • Delivery time: 7 - 8 Workdays (Other countries)
1.453,95 €
incl. 19% VAT , Free shipping to DE NL. shipping costs (Paket)
Old price: 1.562,95 €

  • travel-experienced employees
  • daily DHL shipping
    (Monday till Friday)
  • worldwide shipping

SmartSolar MPPT RS

The SmartSolar MPPT RS is available in two models: 5.76 kW and 11.52 kW. It features a wide operating voltage range of 80-450 VDC, independent tracking inputs, full connectivity, isolated PV terminals, a display screen, fully programmable battery charging parameters and active cooling.

SmartSolar MPPT RS features ultra-fast Maximum Power Point Tracking (MPPT) that allows efficient charging of your 48V battery bank at 100A or 200A. You can fully program the charging settings and adapt them to different battery chemistries such as lead-acid, lithium and others.

Bluetooth and App

With the VictronConnect app you can conveniently read and configure the SmartSolar RS charge controller via Bluetooth . All important information, e.g. B. battery voltage and current, PV voltage and current, historical data and trends, you always have an overview.

Connect SmartSolars in series

You can even add additional SmartSolar RS & Connect VE.Can MPPT units using the VE.Can bus connector. When the units are linked, they automatically sync their charge levels. You can also send your data to a GX device as the Cerbo GX so you can conveniently monitor everything.

Access remotely

If your GX device is connected to the internet, you can access it at any time via the free Victron Remote Management Portal (VRM).

Front Panel Display

The SmartSolar RS charge controller features a convenient front panel display that lets you read battery voltages, charge current and voltages from both arrays individually. You'll get instant and total numbers, as well as device status information and possible error codes.

I/O Connections

With programmable relays and options for remote temperature and voltage query, the SmartSolar RS charge controller can be used even more flexibly. The remote input accepts the Victron smallBMS and other types of BMS with charge permission signals.

Technical specifications
Item weight:
8,00 kg
