Lithium SuperPack Battery 12,8V/200Ah (M8) - Victron Energy

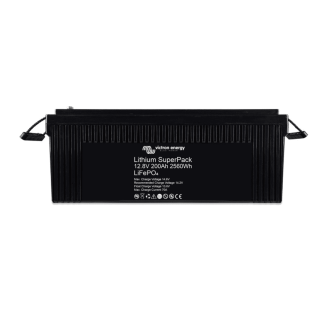

Victron Energy Lithium SuperPack 12.8V/200Ah (M8)

The Victron Energy Lithium SuperPack 12.8V/200Ah combines all the advantages of modern LiFePO4 technology with exceptionally easy installation. Unlike many other Victron lithium batteries, the SuperPack series features an integrated Battery Management System (BMS) with a built-in safety switch, eliminating the need for an external BMS or additional protection components.

This makes the SuperPack series an excellent choice for motorhomes, expedition vehicles, boats and off-grid solar systems where a straightforward installation is preferred. Simply connect the battery, use a suitable charger, and enjoy the proven reliability of Victron lithium technology.


Integrated BMS for reliable protection

The integrated Battery Management System continuously monitors the battery cells and protects them against deep discharge, overcharging and excessively high or low temperatures. If operating limits are exceeded, the internal safety switch automatically disconnects the battery to protect both the battery and connected equipment.


High capacity for demanding electrical systems

With a nominal capacity of 200 Ah and an energy storage capacity of 2,560 Wh, this battery is perfectly suited for larger onboard electrical systems. It supports a continuous charge and discharge current of 70 A and a peak discharge current of 100 A for up to 10 seconds.


Long service life and high efficiency

The LiFePO4 chemistry delivers an impressive 92% round-trip efficiency and approximately 2,500 cycles at 80% depth of discharge. Unlike lead-acid batteries, lithium batteries do not require a full charge after every cycle, which can even contribute to a longer service life.


Easy system expansion

Multiple SuperPack batteries can be connected in parallel to increase the overall storage capacity. Series connection is not supported. The battery features robust M8 terminals, an IP43 protection rating and can be installed upright or on its long side in accordance with the manufacturer's installation guidelines.


Key Features

• LiFePO4 (Lithium Iron Phosphate) technology
• 12.8 V nominal voltage
• 200 Ah capacity (2,560 Wh)
• Integrated Battery Management System (BMS)
• No external BMS required
• Up to 2,500 cycles at 80% depth of discharge
• 92% round-trip efficiency
• 70 A continuous charge/discharge current
• 100 A peak discharge current (10 seconds)
• Unlimited parallel connection
• M8 terminals
• IP43 protection rating
• Dimensions: 208 × 520 × 269 mm
• Weight: 21 kg


If you're looking for a premium Victron lithium battery without the complexity of an external Battery Management System, the Lithium SuperPack 12.8V/200Ah is the ideal solution for reliable and straightforward energy storage.
