Push Control L & connection cable

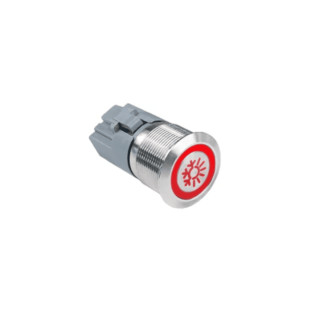

Autoterm Push Control L

The Autoterm Push Control is a compact, easy-to-use switch for controlling Autoterm auxiliary heaters. Depending on the heater, it offers various operating modes and functions. It also meets a long-standing customer request: connecting two control panels to one heater - so the heater can, for example, be started conveniently from the cab while the standard control panel is installed in the living area.

Functions

Operating modes for air heaters

Power mode (default mode): With a single or repeated click, you can choose between five fixed power levels. The color of the LED ring shows which power level the heater is currently running at.

Temperature mode: In combination with an external temperature sensor, a temperature of 18, 21 or 25 degrees can be reached and held. In temperature mode, too, "maximum power" can be set as the highest level.

Operating modes for water heaters

Preheating mode: The heater runs until a certain coolant temperature is reached, then switches the burner off and restarts when the temperature drops. Here you can choose between a run time for the heater limited to two hours or continuous operation.

Easy installation

The Push Control comes in a plug-and-play design with a control module and connecting cable included for quick and easy integration.

Dual control

Finally possible: The Push Control can be used as the sole control element for your heater, or combined with the Autoterm Comfort Control panel to allow dual control of a single heating system. This way, your heater can be operated conveniently from different areas of the vehicle, for maximum ease of use.


Rugged and waterproof

Stainless steel housing with IP67 protection rating, which makes the switch waterproof and safe and durable even in extreme conditions.

Compatibility

Suitable for Autoterm Air heaters (2D, 4D, 8D, 9D) and Autoterm Flow heaters (5D, 5B, 14D).

For compatibility with older models, please contact info@tigerexped.de and include the serial number.

Available in two versions

• 6 mm thread with Molex connector (Art 37878)
• 12 mm thread with round connector (this version)

Button surface diameter: 25 mm for both.

Thread diameter: 22 mm for both.
