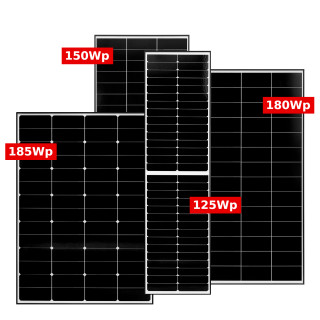

Solar panel „black tiger PRO“ – Premium solar modules for maximum energy yield in your camper
If you want to generate as much energy as possible on your camper roof, every watt counts. The black tiger PRO solar modules were developed exactly for this purpose: maximum energy yield on limited roof space.
With state-of-the-art HPBC cell technology, cell efficiencies of up to 26 % and excellent temperature performance, they are currently among the most powerful solar modules for campers, vans and expedition vehicles.
The key advantages at a glance
- HPBC cell technology for particularly high energy yield per area
- Up to 26 % cell efficiency for maximum performance in limited space
- Optimized temperature behavior for better solar yields in summer
- White backsheet for improved heat reflection
- Multiple bypass diodes for reliable performance even with partial shading
- Compact special formats for optimal use of roof space
Our mission with the black tiger PRO series is clear: to generate as much energy as technically possible from the available roof area of a camper.
1. HPBC cells – more energy per module area
At the core of the black tiger PRO modules are HPBC solar cells (Hybrid Passivated Back Contact).
With this cell architecture, all electrical contacts are located on the back of the solar cell. This eliminates shading on the front caused by conductive tracks – the entire cell surface is available for energy generation.
This design enables very high efficiencies and particularly high energy yield per module area – a crucial advantage on the limited roof space of campers and vans.
2. Up to 26 % cell efficiency
The high-performance cells used in the black tiger PRO modules achieve cell efficiencies of up to 26 %.
This means: more power from the same module area.
Especially on camper roofs, where space for solar modules is limited, a high efficiency allows significantly better utilization of the available area.

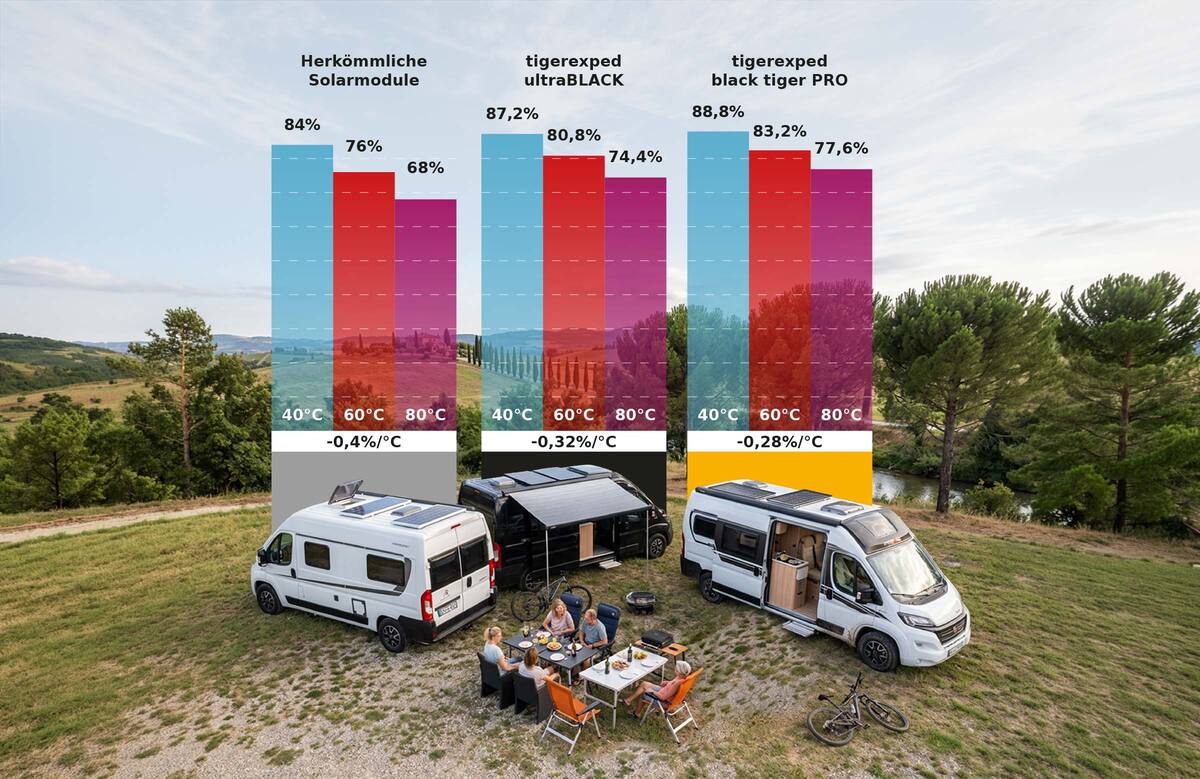

3. Optimized temperature behavior
High temperatures reduce the performance of solar modules. Especially on vehicle roofs, very high temperatures can occur in summer.
In black tiger PRO modules, this temperature behavior is optimized, resulting in a noticeable difference in solar yield under summer conditions. The white backsheet additionally reflects heat better than fully black module backs, which is why we deliberately avoid the ULTRAblack look in this series.
As temperatures rise, the true performance of a module becomes clear. If you want to maintain maximum output in summer conditions, black tiger PRO modules are the right choice.
4. Maximum roof space utilization & minimal susceptibility to defects
Like all tigerexped solar modules, the black tiger PRO panels are specifically designed for use on vehicles.
They are available in various module formats, allowing even roof areas with skylights, vents or other installations to be used as efficiently as possible. At the same time, we deliberately keep the modules compact to reduce susceptibility to microcracks caused by vibrations and impacts while driving.
5. Reliable performance even with partial shading
Shading can rarely be completely avoided – whether from camper components such as skylights, vents, roof racks or antennas, or from surrounding trees and buildings: at least some areas are often temporarily shaded. In many cases, this causes a module’s performance to drop drastically.
The black tiger PRO modules are equipped with multiple integrated bypass diodes for this scenario. These ensure that shaded cell areas are electrically bypassed, allowing the unshaded areas to continue operating.
This plays a crucial role in maintaining a high real-world energy yield from your solar system.
6. black tiger PRO – our premium series for maximum independence
The black tiger PRO series is aimed at anyone who wants to get the most out of their camper solar system.
With:
- modern HPBC cell technology
- up to 26 % cell efficiency
- very high energy yield per area
- optimized temperature behavior
- intelligently configured bypass diodes
- special formats for optimal roof space utilization
these modules represent the current state of the art in camper solar technology.
If you want to generate as much energy as possible from your camper’s limited roof space, black tiger PRO solar modules are the logical choice.
Technical specifications
Select a module size to view the exact specifications for that module.
| Feature | Value |
|---|---|
| Cell technology | HPBC (Hybrid Passivated Back Contact) |
| Cell efficiency | up to 26 % |
| Temperature behavior | optimized for high yields in summer conditions |
| Backsheet | white for improved heat reflection |
| Bypass diodes | multiple integrated |
| Application | campers, vans, expedition vehicles |
| Module formats | various special formats available |
| Note | The exact performance data depends on the selected module size. |
manufacturer information:
texdev GmbH
Weseler Str. 82
Alpen, 46519
NRW, DE
info@texdev.de
responsible person:
texdev GmbH
Weseler Str. 82
Alpen, 46519
NRW, DE
info@texdev.de
Item weight: |
9,15 kg |
|
Dimensions packing
( l × w × h ):
|
149,00 × 40,00 × 3,50 cm |
