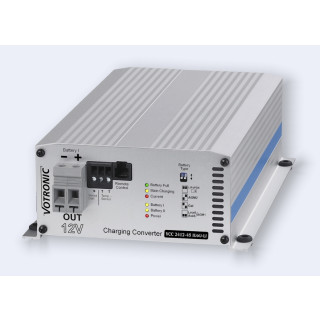

Charging converter VCC 2412-45 IUoU-Li 3315

SKU: 18163
GTIN: 4250683616166
HAN: 3315
Category: charging converters
Manufacturers: Votronic

The new charging converter for 12V on-board systems with a 24V alternator. Complete galvanic isolation and charging programs for all battery types incl. lithium. Temperature sensor included!

Available immediately
Delivery time: 3 - 4 Workdays (DE - int. shipments may differ)

446,95 €

incl. 19% VAT , Free shipping to DE NL.

travel-experienced employees
shipping with DHL & GLS
everything from one source
payment by Paypal or bank transfer

Item
Description
Technical specifications
Reviews
Downloads
related articles

Description

High charging power even on short trips
Significantly improved energy balance of the supply circuit
Excellent protection of the leisure battery and the loads connected to it against the sometimes very strong voltage fluctuations of dynamically regulated alternators in newer vehicles
On longer trips, the IU1oU2oU3 charging technology achieves a full charge while ruling out overcharging
Optimal charging curves for 4 battery types, adjustable via battery selector switch (gel, acid/AGM1, AGM2, LiFePO4)
Automatic, adjustable charging power gives priority to charging the starter battery from the alternator when the vehicle electrical system is heavily loaded, thus ensuring the vehicle can start immediately again
With simultaneous consumption in parallel and buffer operation, the battery continues to be charged or kept full. The charging converter calculates and monitors the adjustment of the charging times automatically.
Built-in temperature compensation automatically adjusts the charging voltage to the battery temperature on its own, independently of the alternator, and enables charging even outside the recommended LiFePO4 battery temperatures below 5°C or above 35°C; battery temperature sensor Art. 2001 is included in the scope of delivery
Easy installation, no intervention in the vehicle's starter circuit required; the device is connected into the charging cable to the leisure battery.
Safety protection and protection against reverse polarity, short circuit and reverse discharge
Connection for remote control Art. 2075, remote operating display IP67 Art. 2081 or Charger State Monitor IP67 Art. 2082
Also prepared for operation with EBL (electrical block) and EVS (VCC 1212-25 IUoU-Li and VCC 1212-45 IUoU-Li only).
Built-in on-board network filter enables trouble-free parallel operation with solar systems, mains chargers and other charging sources on one battery
Galvanic isolation between input and output, through absolute separation of the battery circuits, provides excellent noise suppression, clean ground conditions on both sides even with long supply cables, safety in case of a fault (no breakdown 12V/24V or 24V/12V possible) and reliably prevents unwanted reverse discharge of the battery circuits
Switch input for fully automatic operation (ignition, D+ engine running) or, optionally, manual control via remote switch
Sensing input optionally also allows purely voltage-controlled operation of the device if required
The device can also be used for clean battery charging further away from the alternator in large vehicles, trailers, utility containers, etc.

Input from vehicle starter battery “+ IN Start”
Vehicle starter battery nominal voltage	24 V
Battery capacity (size), minimum recommended	60 Ah
Input voltage range (EURO 6 +), D+ controlled	22 - 32 V
Input overvoltage shutdown (EURO 6 +), max.	32.2 V
Power consumption max.	740 W
Current consumption (at lowest input voltage) max.	30 A
Current consumption standby / OFF (terminal 15 or D+ without signal)	0.11 A / 5 mA
Charging output to on-board leisure battery “+ OUT Bord”
Battery nominal voltage	12 V - 13.3 V
Battery capacity recommended / up to	90-300/400 Ah
Charging current main charge, I-phase, 8 V to U1, 0-15h	45 A
Charge/buffer/load current, regulated U1-U2 phase	0 - 45 A
Selectable charging programs AGM/Gel/Lead Acid, LiFePO4	4
Minimum battery voltage to start charging	0 V
Pre-charge current (battery deeply discharged < 8V), max.	22.5 A
Reverse current from battery, OFF (terminal 15 or D+ without signal)	0 A
Reset voltage AGM-Gel-Lead Acid / LiFePO4 (30sec)	12.8 V/13.4 V
Charging voltage limit (protection of loads)	15.00 V
External overvoltage shutdown (20sec)	15.50 V
Voltage ripple	< 30 mV rms
Input for battery I temperature sensor	yes
Charging timer	3-stage
Reverse polarity / short circuit / reverse discharge / safety protection	---
Overcharge protection	---
Safety timer per charging phase I / U1	yes
EBL START In, EVS sensing input / charging output	---
Charging/float charging for 12 V starter battery	---
Mounting position	any
Temperature range	-20 bis 45°
Speed-controlled, temperature-controlled fan	yes
Gradual reduction of charging power on overtemperature	yes
Safety shutdown on overheating	yes
Dimensions, incl. mounting flanges and terminals (LxWxH)	245 x 160 x 71 mm
Weight	1700 g
Ambient conditions, humidity: max. 95 % room humidity, non-condensing
Scope of delivery: temperature sensor, operating instructions
